光电编码器BISS SSI控制器 及BISS SSI控制IC

gavinxuhello

创意电子代理德国 iC-Haus 小功率 低电压 低功耗 激光二极管 驱动 ic
http://www.weltronics.com/cn/techinfo.php?lnk=detail&bid=29

Email : xu.yibin@weltronics.com
Tel      : 0755-8348 0330
              Kevin

Features

Synchronously triggered measurement data collection from up to 3 BiSS sensors or one SSI encoder
BiSS data rates up to 10 Mbit/sec., SSI up to 4 Mbit/sec.
Protocol compatible with BiSS Master iC-MB3

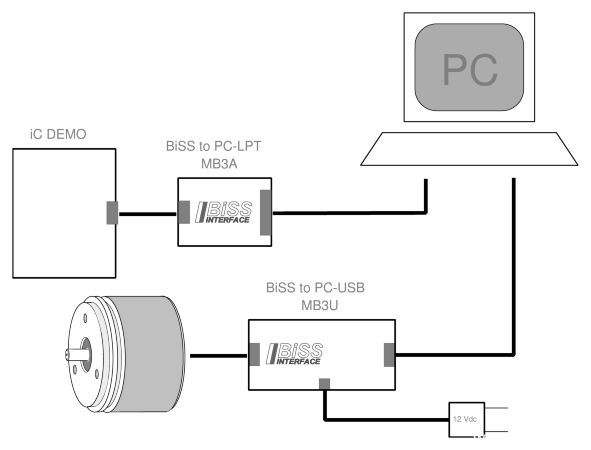

MB3U:
USB 2.0 compatible
Galvanic encoder signal separation
Galvanically separated sensor supply sourced from the USB port (+12 V / 90 mA, +5 V / 50 mA)
Plug-in power supply can be connected for sensors with higher power needs

MB3A:
Connection to the PC parallel printer port
Operates from a single 5 V voltage supplied via the sensor connection or solder terminals

[ 本帖最后由 gavinxuhello 于 2007-9-29 09:47 编辑 ]
