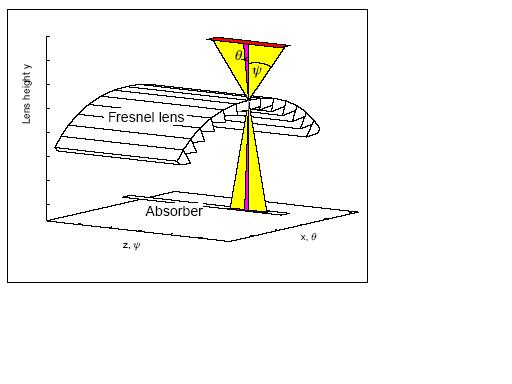

用ZEMAX或CODEV选择何种表面类型可以达到弧型的菲涅耳透镜,如图所示样品

讨论菲涅耳

<br/>

<p>我也想知道ZEMAX关于<strong>菲涅耳的面型使用,那位大师能发扬风格,指点一,二,感谢不尽.</strong></p>

好像都不行吧，ZEMAX只是把它当作理想的fresnel面，但不能画出浮雕结构来。
